High Speed Automatic Intelligent Double Ripple Corrugated Wall Paper Forming Wraping Machine Without Glue
Machine specifications:
| Model | SMD-80A cup size | SMD-80A bowl size |
| Speed | 80-100pcs/min | 70-90pcs/min |
| Cup size | Top diameter: 100mm(max) | Top diameter: 150mm(max) |
| Bottom diameter: 80mm(max) | Bottom diameter: 80mm(max) |
| Height: 110mm(max) | Height: 140mm(max) |
| Raw material | 135-450gsm paper | 135-450gsm paper |
| Configuration | Ultrasonic | Ultrasonic |
| Output | 9KW,380V/220V,60Hz/50Hz | 10KW,380V/220V,60Hz/50Hz |
| Air compressor | 0.4 M3/min 0.5MPA | 0.5 M3/min 0.5MPA |
| Net weight | 3.0 tons | 3.2 tons |
| Dimension of machine | 2500x1800x1700mm | 2700x1800x1800mm |
| Dimension of cup collector | 900x900x1760mm | 1000x900x1860mm |
Mechanical Quality Guarantee
1.Mechanical parts are guaranteed for 3 years, electrical parts are guaranteed for 1 year.
2.All parts on forming table are easy to access for maintenance.
3.All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.
Production Efficiency
1.Production output up to 39,000 cups per shift (8 hours), up to 3.5 million cups per month (3 shifts);
2.Percentage of pass is higher than 99% under normal production;
3.One operator can handle several machines at the same time.

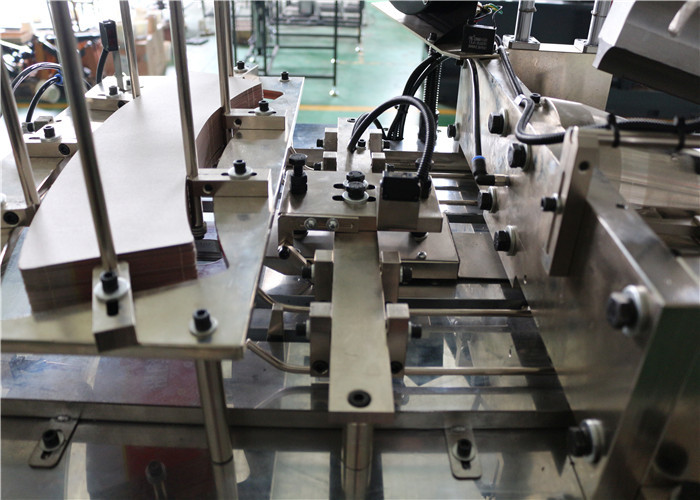

Details:
Finished Products Show:
About us:
Established in 1998, Haining Chengda Machinery Co., Ltd. is a professional paper container equipment manufacturer. We have R&D,production and sales department .After 20 years of hard working, our company has a strong technical team and a research and development center cooperate with Taiwan's senior paper container molding technology team and obtained national patents such as a straight tube machine. Our company has modern assembly workshops, precision parts processing workshops, training centers, QA centers and other infrastructure. Our company has CE, ISO9001 certification system and national import and export rights.
In recent years, based on the characteristics of Chinese paper and the development trend of paper containers home and abroad, we have developed a batch of international synchronization technology unit of the intelligent molding Machine with automatic detection systems and remote connection system for paper cup machine, paper tube machine, paper lid machine,doner box machine and etc.
We lead the market by advanced technology and excellent product quality.In the future, we will continue to feed customers' needs, be brave in innovation, use perfect pre-sales and after-sales service systems to serve customers, and constantly explore the development of paper container molding machines. The new trend is to provide customers with total industry-wide solutions with competitive products.
Trade Show
Our Advantages:
Quality assurance both for our products and service for after-sales.
Favorable price.
Great variety of products.
Attractive design.
Environment Friendly Technology
OEM and ODM service provided.
QC team:
A QC team with more than 10 professional and technical personnel. To ensure 100% products checking.
Material: Strictly control of material using, meet international requested standards.
Semi-finished products inspection: Product inspection before 100% finished.
Production line test: With work team or data engineer who will inspect machines and lines at fixed period.
Finished Product Inspection: Quality and property test before products are packed and loaded.
Maintaince Attention:
1. Don't be in an environment of corrosive gas or smoke
2. Don't in the product may be splashed water, oil or use chemicals.
3. Please with stable voltage source power supply
4. make sure the power cord in good condition, so as not to cause fire or shock damage.
5. Instrument after electrify please don't touch input and output terminals, lest cause electric shock or instrument malfunction.
6. if you open the instrument shell, there may be a shock hazard.Because of power, has its internal capacitance charging, can keep certain voltage.
